| Yes, it's solid state! With the success of our hybrid Class D integrated and power amps, it just seemed like a natural extension. And just like when we introduced the Sphinx integrated amp in 2012, we are lowering the entry point for a reference quality full-featured power amplifier. The RA-1 has an energy efficient "green"
design requiring no tube biasing or regular maintenance.
Rogue has more than a decade of experience getting the absolute best sound from Class D amplifiers.
The RA-1 will expand on that legacy. With our world class power supply implementation the RA-1 is an amplifier worthy of the Rogue name. The RA-1 is powerful, musical, and fully featured. There are both RCA and XLR inputs, it's bridgeable, and it includes a 12V input trigger. You get all this in an attractive 3/4 size chassis. You
can be sure that you are investing in an amplifier that truly
represents the very best in audio technology and value.
Download product literature here
-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
General Features:
[back to top]

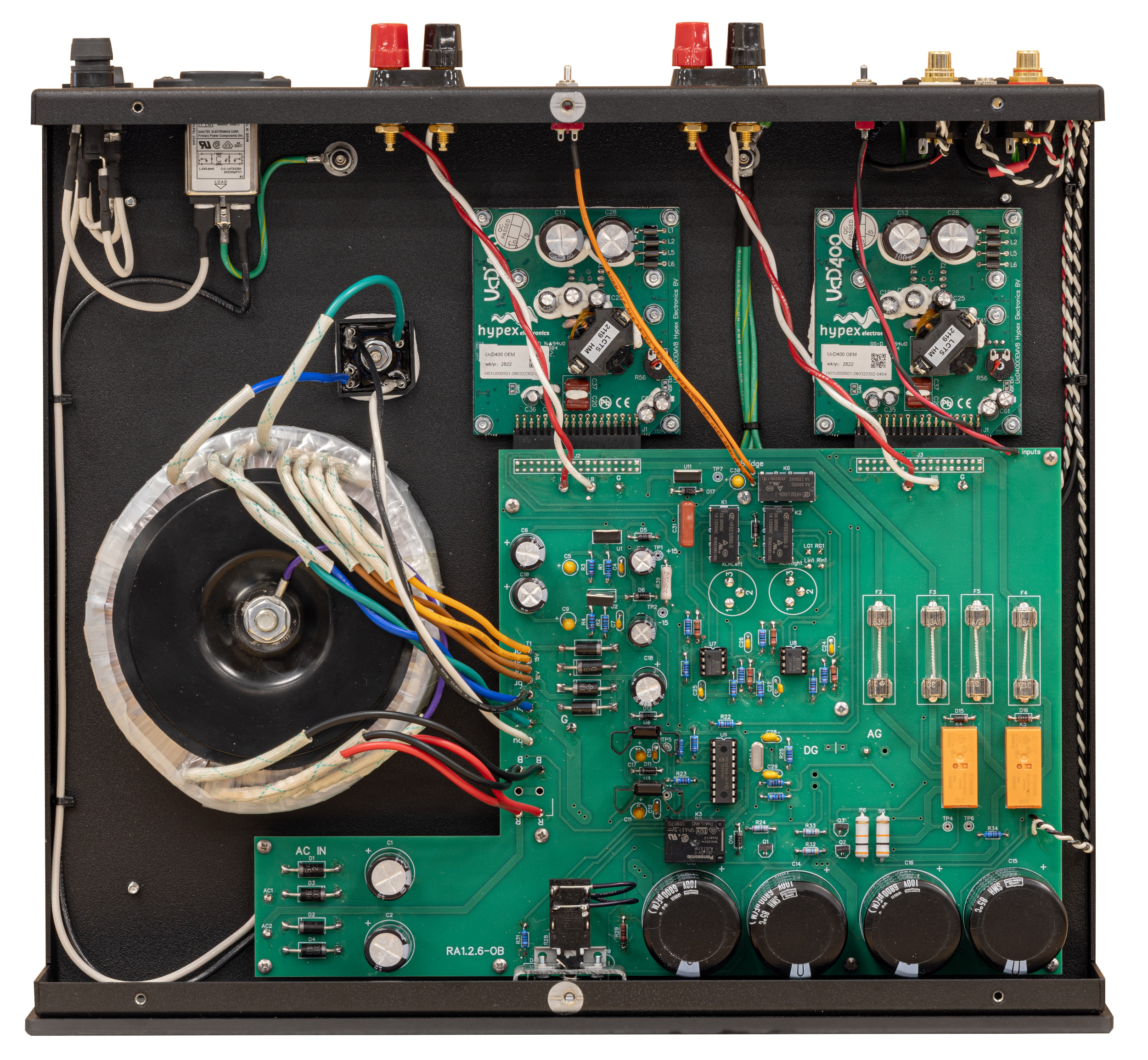

- UCD Hypex modules
- Massive linear power supply

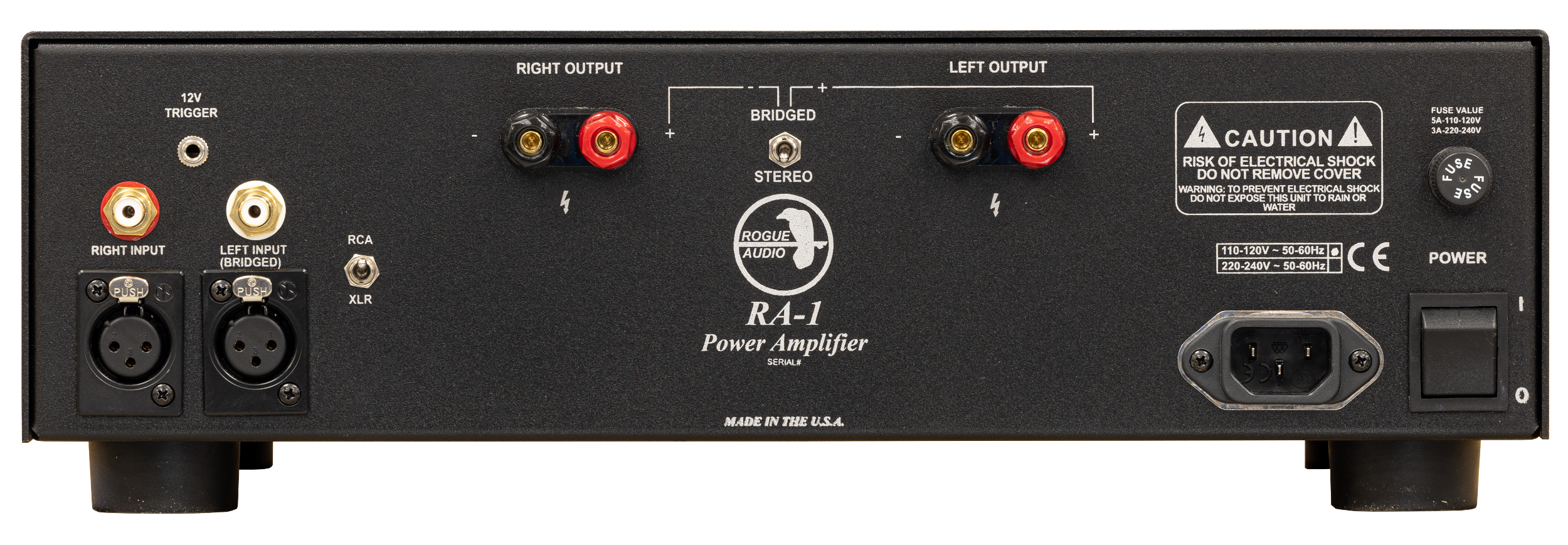

- Balanced (XLR) and single ended (RCA) inputs
- 12V input trigger to wake
-
Heavy-duty gold plated binding posts
- Stereo and Bridged (mono) operation
-
Short circuit protection
-
Standby circuitry for solid state components
-
Machined aluminum
faceplate
- Heavy (2 ounce) copper circuit board
- All precision components
- Fully tested, burned in, and auditioned
- 3 year limited warranty
-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Specifications:
[back to top]
- Output power: 175/275 WPC 8/4 Ohms
-
Input impedance: 47K Ohms
- Frequency response: 5Hz - 30KHz ± 1dB
- THD: <0.1% typ., <1.0% at rated power
- Input sensitivity: 1.0V RMS
- Dimensions: 15.25" W x 14.5" D x 5" H
- Weight: 26 lbs
- Power requirements: 120/240V - 50/60Hz
Specifications
subject to change without notice
|
