Based
on our flagship Hera preamplifier, the Athena offers reference level
performance in a more compact single box design. The Athena uses
four 6H30P tubes in a mu-follower configuration to provide outstanding
detail and dynamics. A seperate power supply which can be tucked
behind your system provides power to the enormous power supplies
located in the main chassis.
Like the Hera, every aspect of the Athena design is aimed at maintaining
near perfect signal integrity. To that end, we have designed a stepped
attenuator that uses purely resistive elements to derive more than
120 individual volume steps. The switch itself is proprietary and
manufactured in Switzerland specifically for Rogue Audio. A miniature
slipper clutch (much like those used in racing vehicles) connects
the massive attenuator to a motor that can then be remotely controlled.
All functional switching is done via heavy duty silver switches
rather than being routed through a silicon chip. Capacitors, resistors
and all other critical parts are of the highest quality as well.
The chassis itself is a fully machined work of industrial art that
provides the mechanical and electrical isolation necessary for the
incredibly low noise floor of the Athena. The ultra-sophisticated
design also includes a phase invert button, balance bypass, processor
loop, unity gain bypass and a host of other features. Our design
goal was to closely approach the performance of the Hera in a more
compact single box design - We think you will be very happy with
the results.
Download product literature here
-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
General Features:
[back to top]
- Four 6H30P tubes

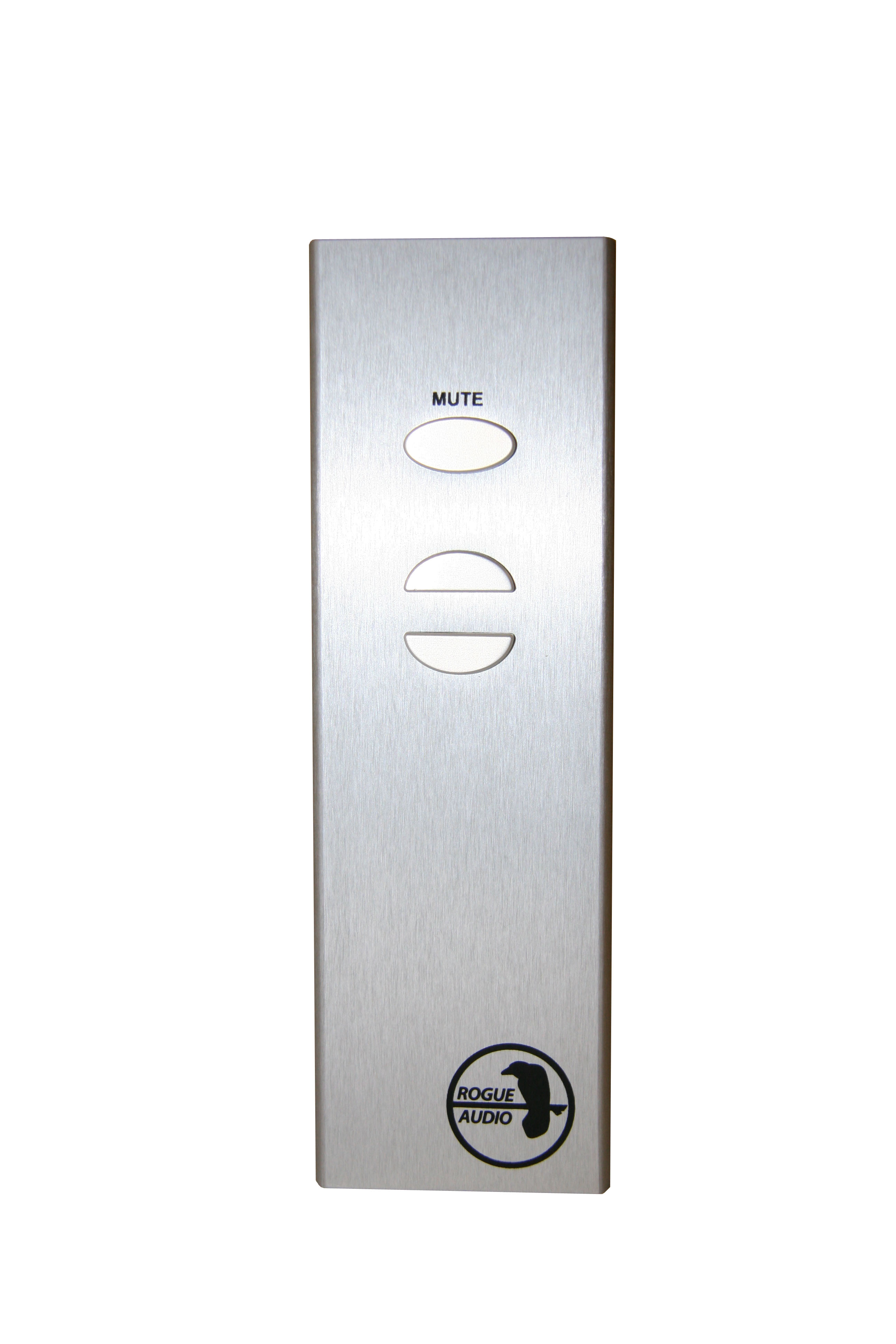

- Remote control w/ volume and mute
- Phase invert button
- Home theater (unity gain) bypass
- Mono button
- Processor Loop
- Tape monitor
- Balance/Balance defeat
- Five gain settings
- CNC machined aluminum chassis
Connections:
- 4 pairs RCA inputs
- 2 pairs RCA outputs
- 1 pair Balanced XLR inputs
- 2 pairs Balanced XLR outputs
- 1 pair unity gain inputs (cinema bypass)
Dimensions:
- Main Chassis: 18.25” W x 15.25” D x 5” H
- Power Supply Chassis: 4” W x 11” D x 4” H
- Weight 45 pounds
- Shipping weight 50 pounds
-
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Specifications:
[back to top]
- Frequency response:
- 5Hz - 150KHz +/- 0dB
- 1Hz-300KHz +0/-3dB
- THD <0.1%
- Gain 12dB single ended 15dB Balanced
- Rated output 1V RMS
- Output impedance 220 Ohms
- Maximum Output 25V Peak
Specifications
subject to change without notice
|
